Siebert Optics - Illuminated Eyepieces

Do you want an Ultra eyepiece with the reticule of your choice? Add $50 to the price

Click here to see choices.

15x80mm Finder Scope. Illuminated crosshairs with universal mount.

for $299

One available with a 2 week lead time.

Illuminated eyepiece has 20mm ER and a sharp 50 deg FOV

26mm, 28mm, 30mm,32mm and 35mm illuminated Focusable Crosshairs 1.25"-eyepieces.

Doubled Crosshairs/star box Optional add $10

Laser illuminated (Extra batteries included).

Adjustable illumination level.

These eyepieces sell for $169

------------------

Same as above but Non Illuminated single crosshairs :eyepieces for $99 for Double crosshairs add $10

These are more Non Illuminated options. Add $50 or total is $149 >>>>>>>>>>>>>>

50 deg FOV

Click on picture to enlarge and see instructions.

See chart below for many more options

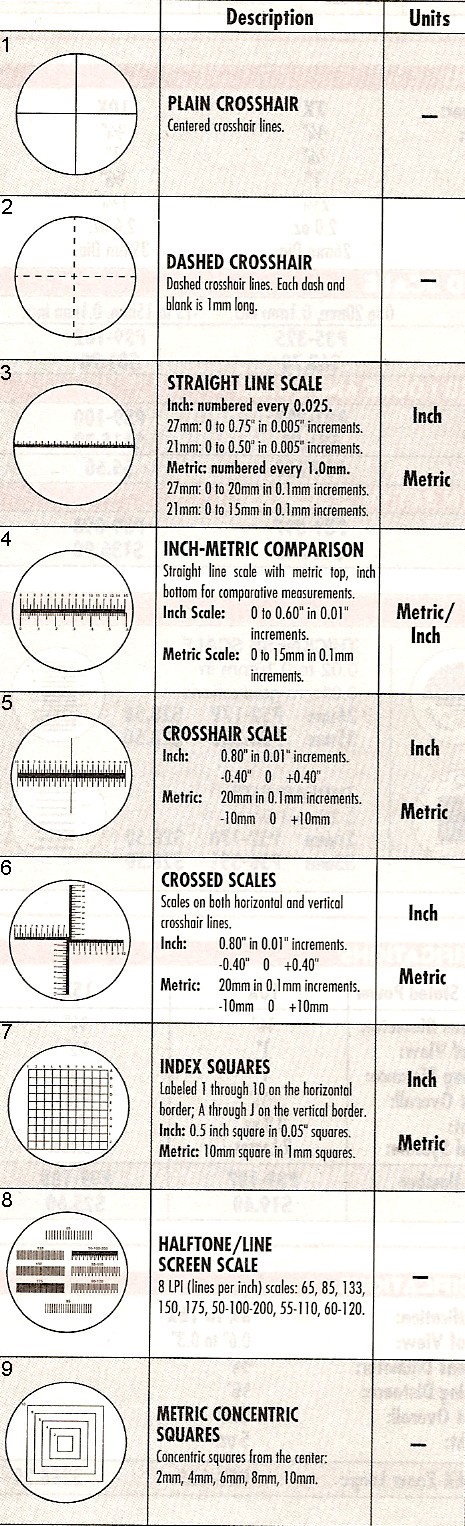

Select from list of the follow. Just click on pic's

These reticules can be used on any of the following Non Illuminated eyepieces 26mm,28mm,30mm, 32mm,35mm. There Hi-Res pic's might need to blown up in Picture editor.

Return policy Click Here

34mm, 36mm,38mm and 40mm illuminated Focusable Crosshairs 2""-eyepieces.

Doubled Crosshairs/star box Optional

Laser illuminated (Extra batteries included).

Adjustable illumination level.

Prices below fior the 2" eyepieces

Double illuminated and non Illuminated Crosshairs w/ star box. add $10.

See chart below for many more options

70 deg FOV

Click on picture to enlarge and see instructions.

See chart below for many more options

Product Id.	Diameter	Focal Length	Field of View	Eye Relief	Price	Comments
IEP125-26	1.25"	26mm	50 deg.	20mm	$169.00	ill / focus crosshairs
IEP125-30	1.25"	30mm	50 deg.	20mm	$169.00	ill / focus crosshairs
IEP125-35	1.25"	35mm	47 deg.	24mm	$169.00	ill / focus crosshairs
fEP125-26	1.25"	26mm	50 deg.	20mm	$119.00	focusable crosshairs
fEP125-30	1.25"	30mm	50 deg.	20mm	$119.00	focusable crosshairs
fEP125-35	1.25"	35mm	47 deg.	24mm	$119.00	focusable crosshairs
For	all	the	above	add	+$10	For double crosshairs with star box.
fEP2"-34	2:"	34mm	70 deg.	21mm	$299.00	Single or double crosshairs
fEP2"-36	2:"	36mm	70 deg.	21mm	$299.00	Single or double crosshairs
fEP2"-38	2:"	38mm	70 deg.	21mm	$299.00	Single or double crosshairs
fEP2"-40	2:"	40mm	70 deg.	24mm	$349.00	Single or double crosshairs
fEP2"-34	2:"	34mm	70 deg.	21mm	$349.00	focusable crosshairs
fEP2"-36	2:"	36mm	70 deg.	21mm	$349.00	focusable crosshairs
fEP2"-38	2:"	38mm	70 deg.	21mm	$349.00	focusable crosshairs
fEP2"-40	2:"	40mm	70 deg.	24mm	$399.00	focusable crosshairs
iEP2"-34	2:"	34mm	70 deg.	21mm	$349.00	illuminated crosshairs
iEP2"-36	2:"	36mm	70 deg.	21mm	$349.00	illuminated crosshairs
iEP2"-38	2:"	38mm	70 deg.	21mm	$349.00	illuminated crosshairs
iEP2"-40	2:"	40mm	70 deg.	24mm	$399.00	illuminated crosshairs
ifEP2"-34	2:"	34mm	70 deg.	21mm	$399.00	ill / focusable crosshairs
ifEP2"-36	2:"	36mm	70 deg.	21mm	$399.00	ill / focusable crosshairs
ifEP2"-38	2:"	38mm	70 deg.	21mm	$399.00	ill / focusable crosshairs
ifEP2"-40	2:"	40mm	70 deg.	24mm	$449.00	ill / focusable crosshairs
For	all	the	above	add	+$10	For double crosshairs with star box

See Products list for complete list of prices and configurations.

All listed products come with a 30-day money-back guarantee unless otherwise stated.

Specialty order items are not refundable (items made specifically for you).

We welcome
International orders!.

GIFT CERTIFICATES
available in any dollar amount you wish to purchase.

We accept Visa, Mastercard,

Discover

American Express, U.S. Money Orders, and Personal Checks (held 10 working days for clearing). Online payments may be made securely through

For Ultra eyepieces with reticules

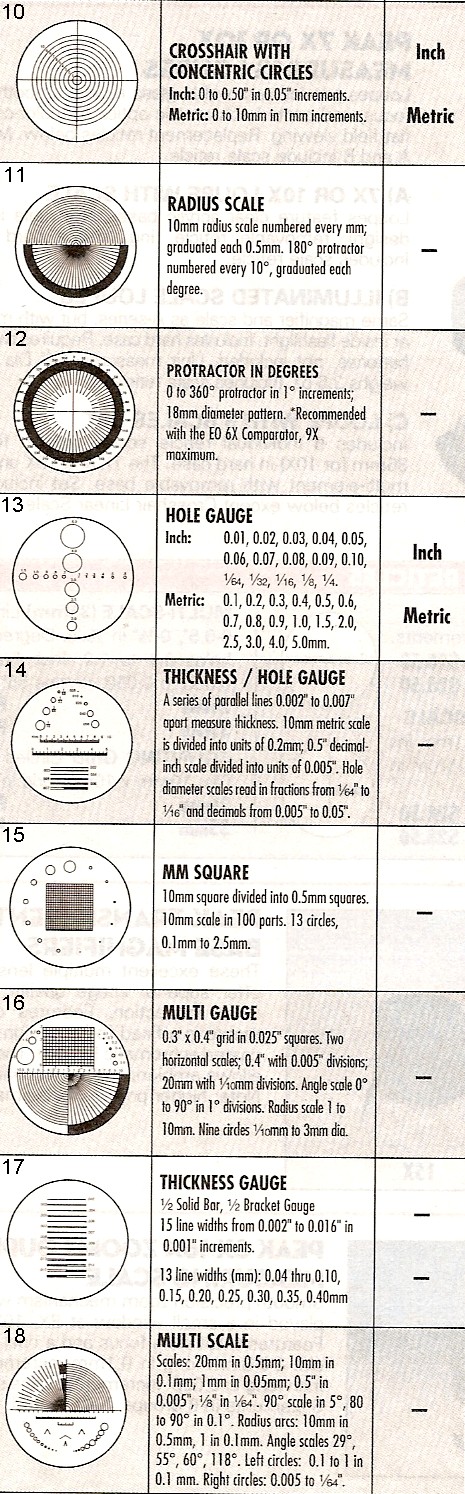

Select from list of the follow. Just click on pic's

These reticules can be used on any of the following Non Illuminated Ultra eyepieces 7mm,9mm,11mm, 13mm,15mm, 17mm-19mm. There Hi-Res pic's might need to blown up in Picture editor. see below for refund policy**

**Reticule choices 1,2 and 9 are 100% refundable for 30 days. All other choices are subject to a $30 restock fee since they might not be common choices and hence take a lot more time for resale.
